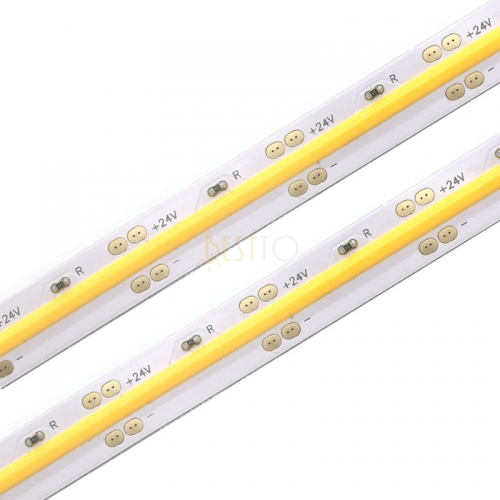

2019 new flexible cob led strip lights
Item No.: BT-FCOBX189-24
♦ Adopt High-bright 2110 SMD LED.
♦ 180° beam angle, better view than normal led strips.
♦ Uniform lighting, without any led lighting dots.
♦ Super durable, can be Arbitrarily Bending without quality problem.
♦ 180° beam angle, better view than normal led strips.
♦ Uniform lighting, without any led lighting dots.
♦ Super durable, can be Arbitrarily Bending without quality problem.
Description
Data sheet
Drawings
Connect drawing
Product Details：
01.RESISTANCE
Using SMD resistors 128 and the unique arrangement
to better protect the light emtting.
02.22AGW PURE COPPER WIRE
Welding is firm , good overcurrent PVC wire.
03.SOFTNESS
The light belt is based on a very soft FPC which can
be flexed and will not be broken.
04.CHIP
Without any light dot or spot .Light soft , nodazzling.
Arbitrarily Bending : Flip Chip Smaller bendable angle .180 Big view angle .
Better view with big beam angle:
| Product name: | COB led strip | COB led strip | COB led strip | COB led strip |
| Part NO: | BT-FCOBX189-R80 | BT-FCOBX189-R90 | BT-FCOBX252-R80 | BT-FCOBX252-R90 |
| LED Qty: | 378 pcs | 378 pcs | 504 pcs | 504 pcs |
| CRI (RA) | 80 | 90 | 80 | 90 |
| Input Voltage: | DC24V /12 | DC24V /12 | DC24V /12 | DC24V /12 |
| Watts: | 14W | 14W | 14W | 14W |
| Luminous Flux: | 107LM / W | 107LM / W | 107LM / W | 107LM / W |
| Color: | 2700/3000/4000/6000K | 2700/3000/4000/6000K | 2700/3000/4000/6000K | 2700/3000/4000/6000K |
| PCB color: | White | White | White | White |
| IP Grade: | IP20 | IP20 | IP20 | IP20 |
| Operating temperature: | .-25 to 45℃ | .-25 to 45℃ | .-25 to 45℃ | .-25 to 45℃ |
| Beam angle: | 180 degree | 180 degree | 180 degree | 180 degree |
| Certification: | CE; RoHS | CE; RoHS | CE; RoHS | CE; RoHS |
| Max Run: | 5M | 5M | 5M | 5M |
| Min Run: | 24V 55.5mm 12V 23.8mm |
24V 55.5mm 12V 23.8mm |
24V 41.67mm 12V 17.85mm |
24V 41.67mm 12V 17.85mm |
| Dimension: | 5000 x 10 x 2.2mm | 5000 x 10 x 2.2mm | 5000 x 10 x 2.2mm | 5000 x 10 x 2.2mm |
